Antelope Audio Orion Studio Synergy Core | LPA special

Antelope Audio Orion Studio Synergy Core | LPA special

Name: Antelope Audio Orion Studio Synergy Core | LPA special
SKU: 2208221004

Thunderbolt 3 & USB audio interface met 12 discrete voorversterkers, dual host streaming, ruimtecorrectie en ingebouwde real-time effecten

Orion Studio Synergy Core

Jaarverhuur

€1,29/ dag

Voeg toe aan jaarverhuur +

Korte verhuur

Vanaf€5,14/ dag bij 1 week huur

Voeg toe aan korte verhuur +

Beschikbaar in demo ruimte

Test het product in onze demo studio!

Reserveer tijdslot

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

Antelope Audio Orion Studio Synergy Core

The Complete Professional Studio in a Single Rack Unit

THUNDERBOLT 3 & USB AUDIO INTERFACE WITH 12 DISCRETE PREAMPS, DUAL HOST STREAMING, ROOM CORRECTION, AND ONBOARD REAL-TIME EFFECTS

A Recording and Production Centerpiece

Orion Studio Synergy Core is designed to be the heart of your professional recording studio for years to come. Featuring 12 Discrete microphone preamps, top-tier AD/DA conversion, extensive analog and digital I/O, and integrated room analysis and calibration, the rackmount interface provides a complete production environment for recording, mixing, and monitoring.

With Thunderbolt™ 3 and USB connectivity, the Orion Studio Synergy Core supports Dual Host streaming, allowing audio to run simultaneously between two computers for flexible workflows, collaboration, and added redundancy during critical sessions. Optional Dolby Atmos monitoring and calibration support (available via additional purchase) further expands the system for immersive audio production.

IN SHORT

Class-leading conversion with up to 130dB dynamic range on both pairs of monitor outputs, paired with Antelope Audio’s 64-bit AFC™ clocking technology for detailed recording and accurate playback;
12 Discrete microphone preamps with up to 75dB of gain for pristine recordings, with Direct In mode for bypassing the preamps and recording line-level sources straight into the converters;
Thunderbolt™ 3 and USB connectivity with Dual Host streaming, allowing playback and recording on two computers simultaneously;
30 in / 42 out total I/O, including analog, ADAT, S/PDIF, monitor, headphone, ReAmp, and DB25 line outputs;
Synergy Core real-time effects processing, allowing up to 144 mono effects to be loaded simultaneously with near-zero latency;

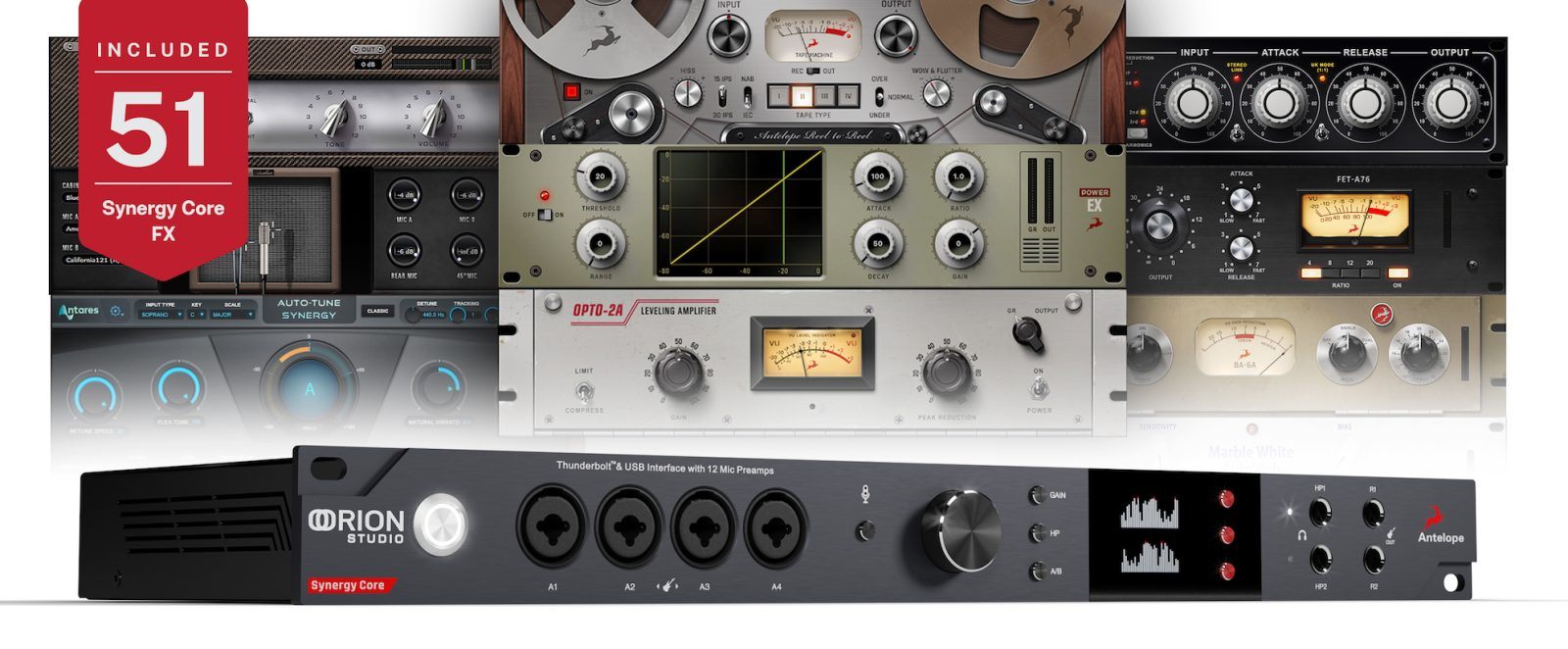

51 included real-time effects modelled after vintage analog compressors, EQs, mic preamps, guitar amps, cabinets, and studio processors;
Integrated room analysis and calibration for applying corrective EQ curves directly from the Orion Studio control panel with near-zero latency and no additional CPU load;
Atmos-ready monitoring and calibration support with up to 9.1.6 format (additional purchase).

FEATURES

Conversion & Clocking

Class-leading AD/DA conversion with up to 130dB dynamic range on both pairs of monitor outputs.
Recording, mixing, and playback at up to 24-bit/192kHz.
Proprietary 64-bit AFC™ Acoustically Focused Clocking technology for increased detail, width, and separation.
Word Clock I/O for integrating the Orion Studio Synergy Core with other digital studio equipment.

Connectivity

Rackmount Thunderbolt™ 3 and USB audio interface with 30 in / 42 out
12 Discrete microphone preamps with up to 75dB of gain.
8 x Mic / Line Inputs / Direct In.
4 x Mic / Line / Hi-Z Inputs / Direct In.
2 x Hardware Inserts on TRS for inputs 1 and 2.
2 pairs of monitor outputs on TRS 1/4” jacks, able to work simultaneously or in A/B mode.
2 x ReAmp outputs on TRS 1/4” jacks.
16 line output channels over 2 x DB25 connectors.
2 x stereo headphone outputs.
2 x ADAT inputs and 2 x ADAT outputs, with up to 16 channels available.
S/PDIF input and output on RCA.
DC-coupled I/O for CV control of analog modular synths.

Workflow-enhancing features

Dual Host streaming allows playback and recording via USB and Thunderbolt on two computers simultaneously.
Built-in room analysis and calibration tool for improved monitoring and mixing accuracy.
Digital patch bay for flexible routing across analog, digital, computer, and mixer channels.
4 x Latency-free mixers for custom monitoring workflows.
Direct monitoring with Synergy Core effects processed in real time with near-zero latency.
Direct In mode for bypassing the microphone preamps when recording line-level sources.
Multichannel monitoring tools with support for advanced speaker setups (additional purchase)
Atmos-ready monitoring and calibration with up to 9.1.6 format (additional purchase)

Real-time effects processing

Synergy Core proprietary onboard platform powered by 2 FPGA and 6 DSP chips.
Up to 144 mono real-time effect instances loaded simultaneously.
51 included real-time effects modelled after classic and rare analog outboard gear.
Real-time tracking, monitoring, and mixing with near-zero latency.
Effects processed inside the interface, placing no additional load on the host computer CPU.
