Audix TM 1

Audix TM 1

Omni-directional test- en meetmicrofoon

Prijs op
aanvraag Gouden Klant prijs beschikbaar!
Klik hier en word Gouden Klant

Aantal

Voeg dit product toe aan uw offerte.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

In offerte

Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

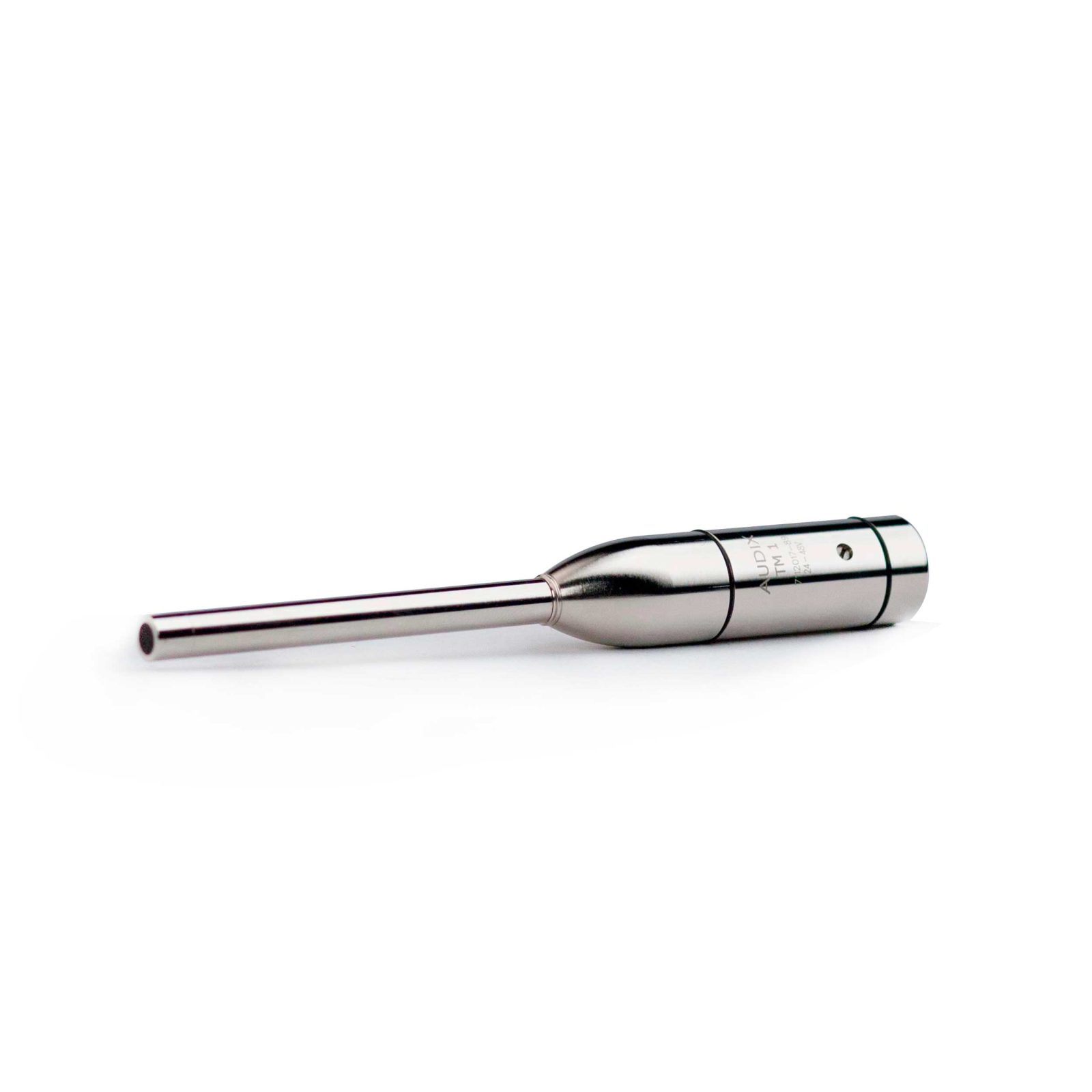

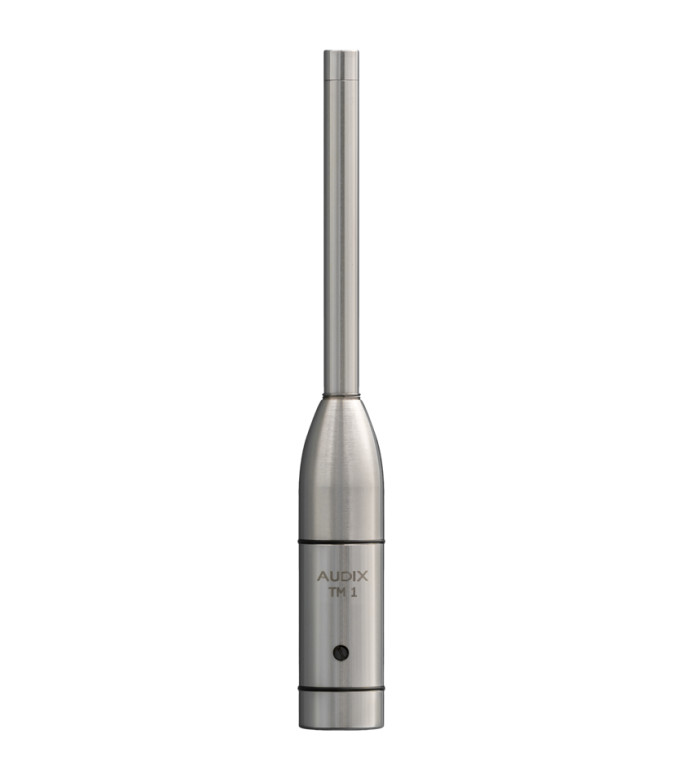

TM1

Omni-directional test and measurement microphone

The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz – 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.

The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by Audix in the USA.

MODEL VARIATIONS

TM1PLUS – includes calibration data file and sensitivity, threaded acoustic windscreen, and CA4231 machined calibration adapter *

*Bruel & Kjaer® 4231 sound level calibrator or equivalent

FEATURES

6mm pre-polarized condenser capsule
Hi SPL response
Low noise electronics
Replaceable electronics and capsule

APPLICATIONS

Test and measurement
Real time analyzers
Room analysis software programs
Ambient room miking

SUPPLIED ACCESSORIES

DCLIP - Heavy duty tension fi t mic clip
P1 - Carrying pouch

OPTIONAL ACCESSORIES

CBL20 - 20’ XLR-XLR quad conductor mic cable

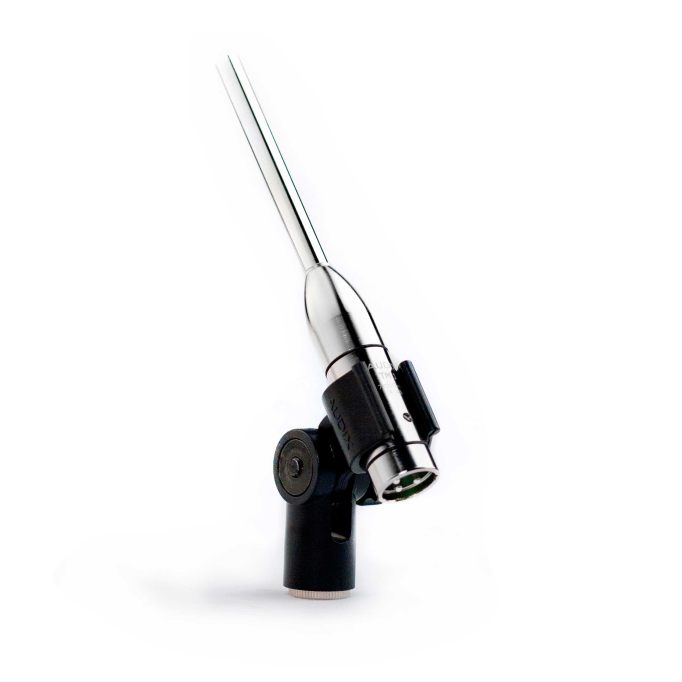

SMT19 - Shock mount clip
SMT25 - Shock mount system
TM1CA4231 - Calibration adapter
TRIPOD - Tripod mic stand

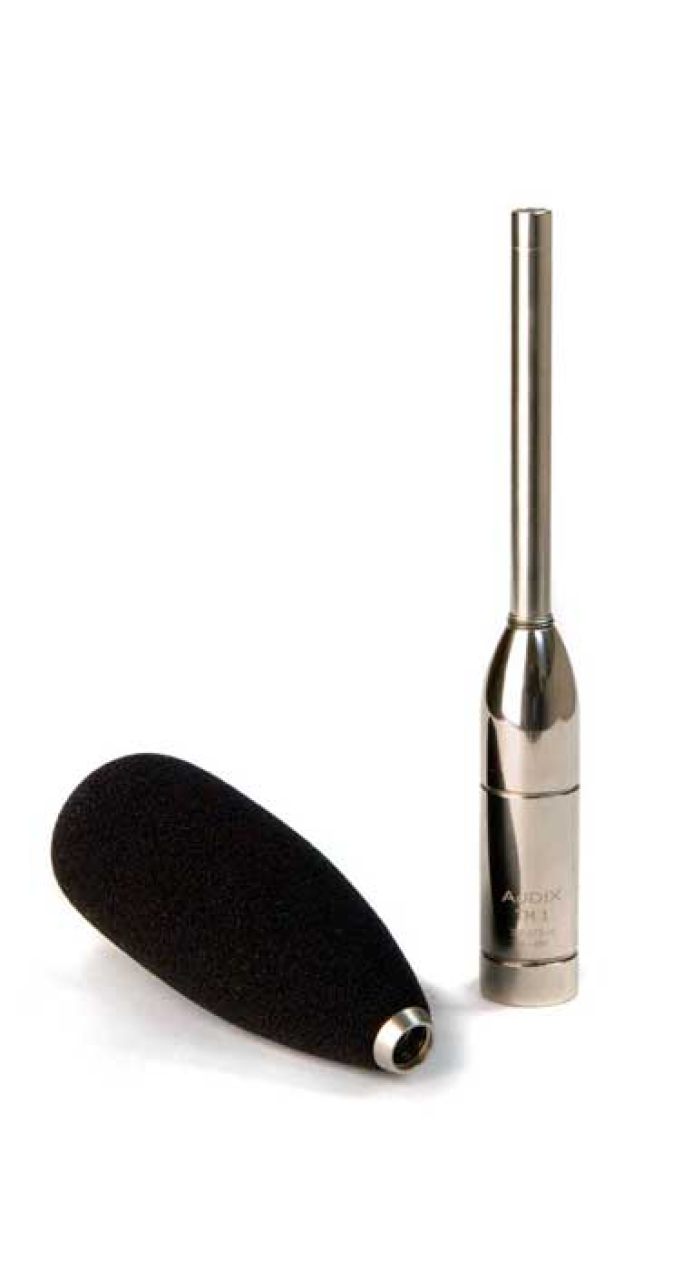

WSTM1 - Threaded windscreen

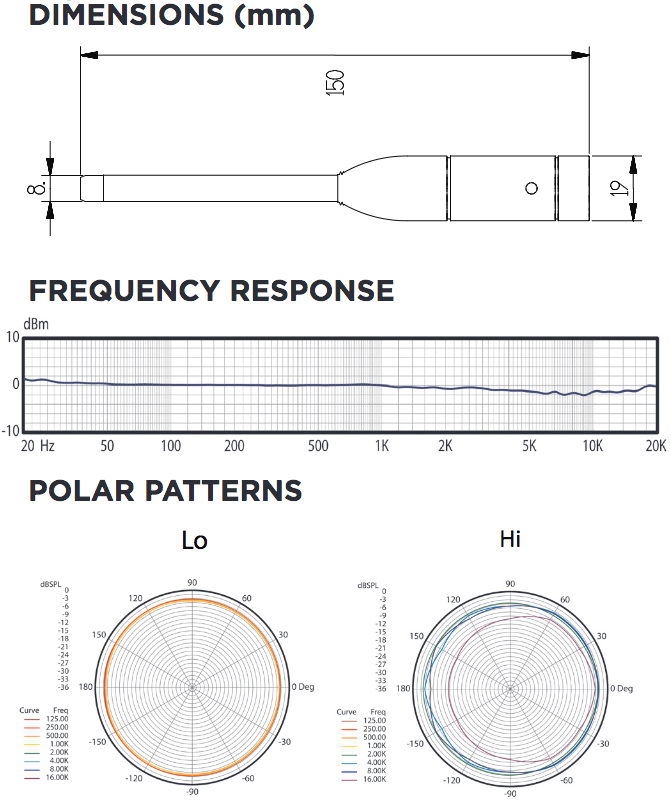

SPECIFICATIONS

Transducer Type: Pre-polarized Condenser

Frequency Response: 20 Hz - 20 kHz +/-2 dB

Polar Pattern: Omni

Output Impedance: 200 ohms

Sensitivity: 6 mV / Pa @ 1k

Maximum SPL: 130 dB with distortion <1% 140 dB Max

Signal to Noise Ratio: 66 dB

Equivalent Noise Level: 28 dB (A weighted)

Dynamic Range: 112 dB

Connector: male XLR

Power Requirements: 24 - 48 V Phantom

Power Consumption: 8.9 mA @ 48 Volts

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

Materials / Finish: 4 piece precision machined brass / Nickel Finish

Weight: 132 g / 4.7 oz

Length: 150 mm / 5.9 in
