Black Lion Audio PBR 8-500

Black Lion Audio PBR 8-500

8-slots 500-serie rack/voeding met gepatenteerde patchbay die onbeperkte routing opties biedt

PBR 8-500

Prijs op
aanvraag Gouden Klant prijs beschikbaar!
Klik hier en word Gouden Klant

Aantal

Voeg dit product toe aan uw offerte.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

In offerte

Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

Black Lion Audio PBR 8-500

500-series Rack with Patented Black Lion Technology

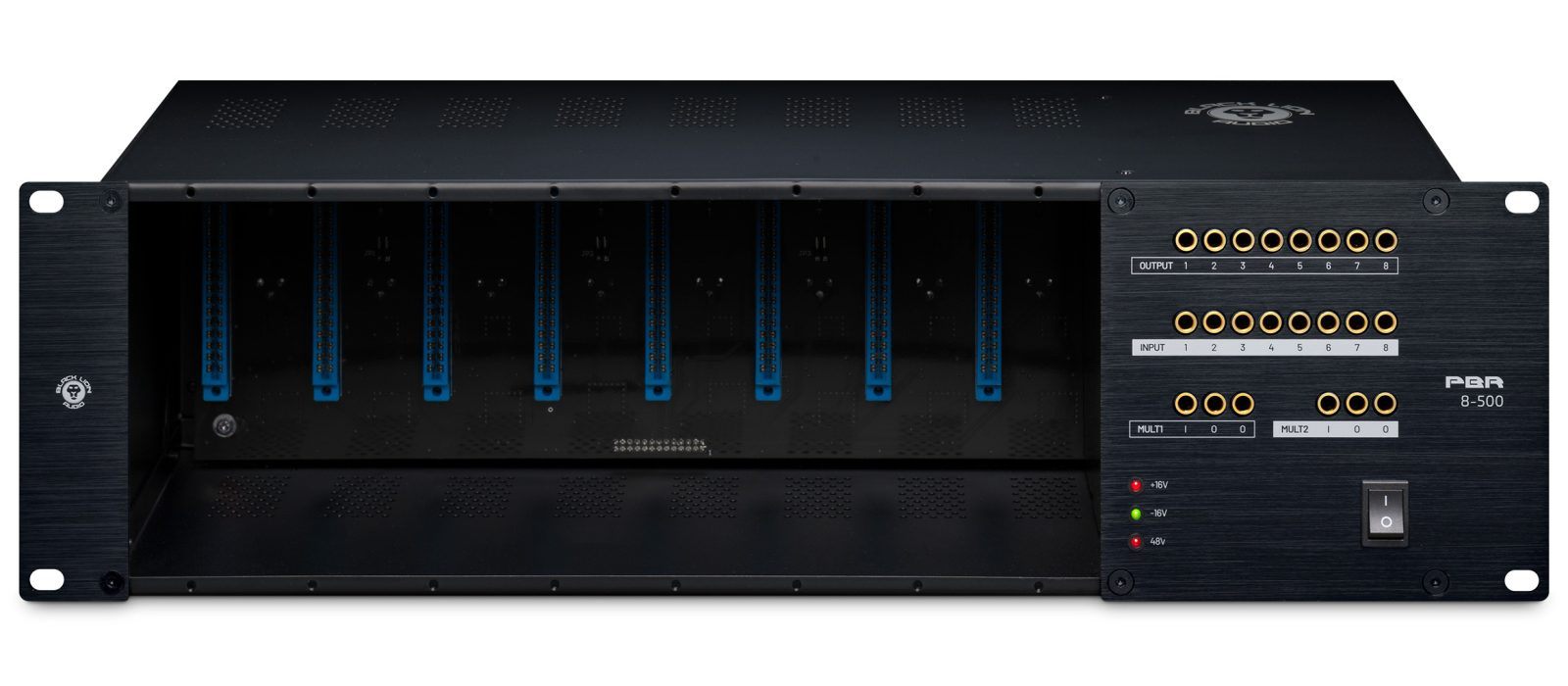

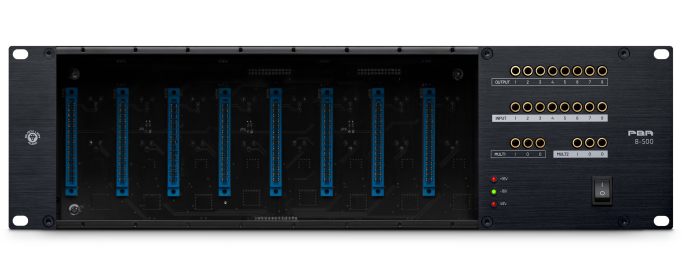

The PBR 8-500 is an 8-slot 500-series rack/power supply with a unique, patented patchbay that provides unlimited routing options for your 500-series hardware. You’ll quickly route and re-route signals through your module collection without needing to re-rack your modules to suit a predetermined signal flow. Fitting eight 500-series slots into a 3U rack-mountable enclosure, the PBR 8-500 is right at home both in the studio or on the road.

The Creative Engineer’s 500 Rack

When inspiration strikes, you’ll never lose time removing and re-racking your modules to enact some clever routing. The PBR 8-500 is equipped with a fully balanced TT/Bantam patchbay for unlimited creative routing potential — a rarity in the 500-series landscape. You get Inputs and Outputs for every slot, as well as two Mults. The Mults offer a single input and two outs, each — allowing you to split the output of a single module to two others. It’s ideal for parallel processing. Possibilities abound. You can easily audition a signal chain, reroute it, split it via one of the Mults, send it to modules in another rack, route it back, then output it — all right from the front panel. And if you want to link two adjacent modules for stereo operation, it’s just a button press away. Internal jumpers are also available for setting up less common linking setups.

Features

500-Series 8-Slot Rack/PSU with Built-in Patchbay
8 stereo-linkable 500-series slots
Front-mounted, patented TT patchbay: 8 ins and outs; 2 mults

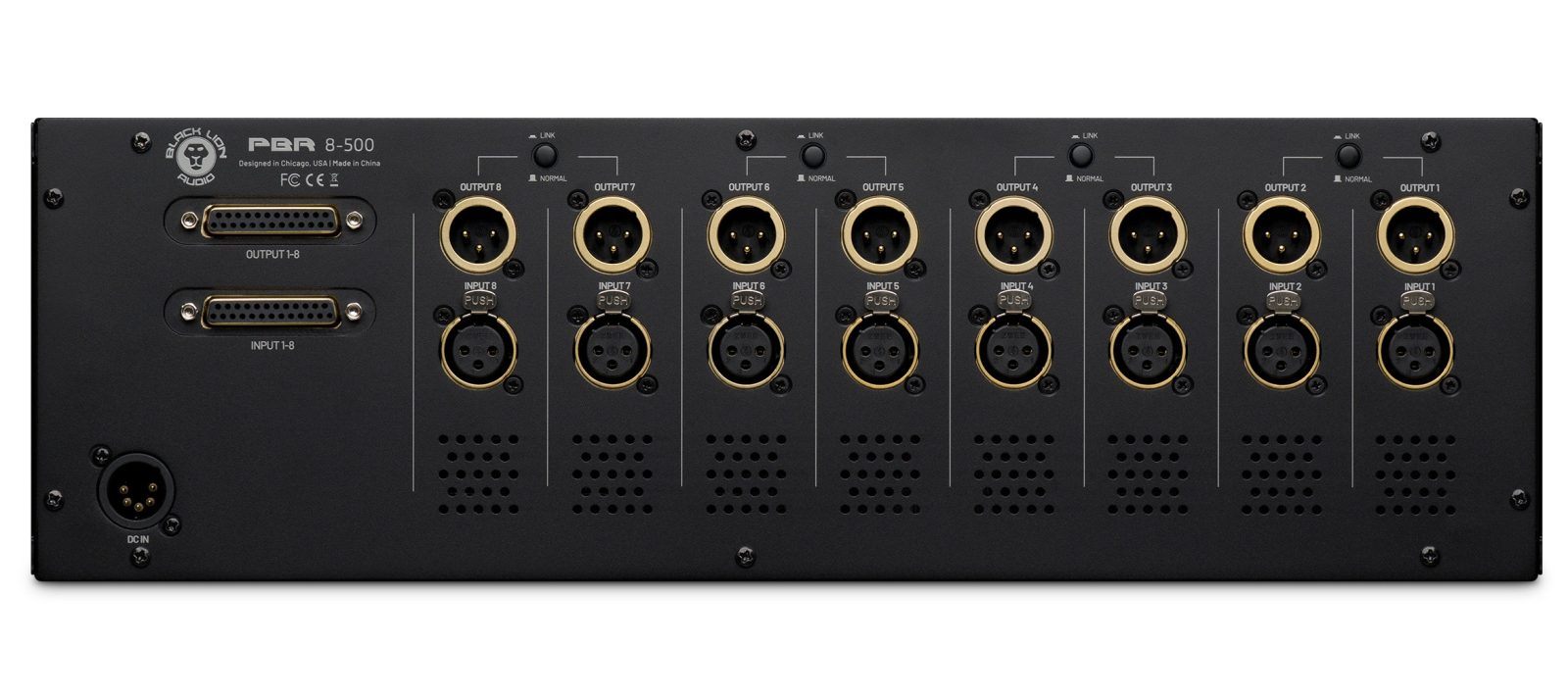

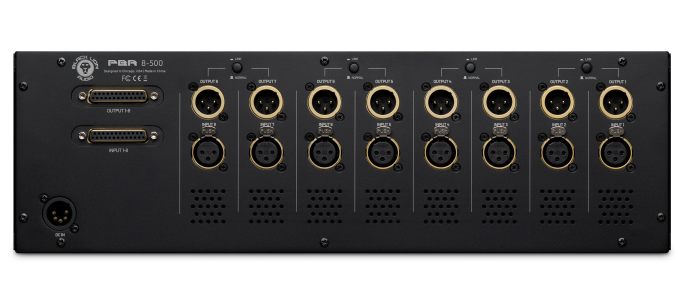

Gold-plated XLR, DB25, and TT I/O
Clean, isolated power with plenty of current for each slot
High-current audio rails for low noise
Maximum phantom power current: 140 mA
Operating voltage: 100–240 VAC

Click here for technical specifications, downloads and more...

Check out the entire PBR family in the patchbay section:

PBR TRS: 48-Point Gold-Plated TRS Patchbay
PBR TRS3: 48-Point Gold-Plated TRS Patchbay with 3-way switching
PBR TRS3 LIT: 48-Point Gold-Plated TRS Patchbay with 3-way switching and customizable LED display
PBR TT: 96-Point Gold-Plated TT/DB25 Patchbay
PBR TT LIT: 96-Point Gold-Plated TT/DB25 Patchbay with customizable LED display
PBR XLR: 16-Point Gold-Plated XLR Patchbay
PBR XLR 16F DSub: 16-Point Gold-Plated XLR/DB25 Patchbay
PBR XLR 32 DSub: 32-Point Gold-Plated XLR/DB25 Patchbay
PBR XSplit8: 8-channel passive XLR mic splitter
PBR 8-500: 500-Series 8-Slot Rack/PSU with Built-in Patchbay
