DAD NTP Technology Penta 720

DAD NTP Technology Penta 720

Modulaire audiorouter en interface met 8 uitbreiding slots

Penta Series

Prijs op
aanvraag Gouden Klant prijs beschikbaar!
Klik hier en word Gouden Klant

Aantal

Voeg dit product toe aan uw offerte.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

In offerte

Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

DAD NTP Technology Penta 720

Modular Audio Router & Interface with 8 Exp Slots

Penta 720 provides a versatile and flexible interface for signal distribution of analogue and digital audio via AES/EBU, MADI, SDI SD/HD/3G embedded audio as well as routing via IP Gigabit Ethernet and optical fiber networks.

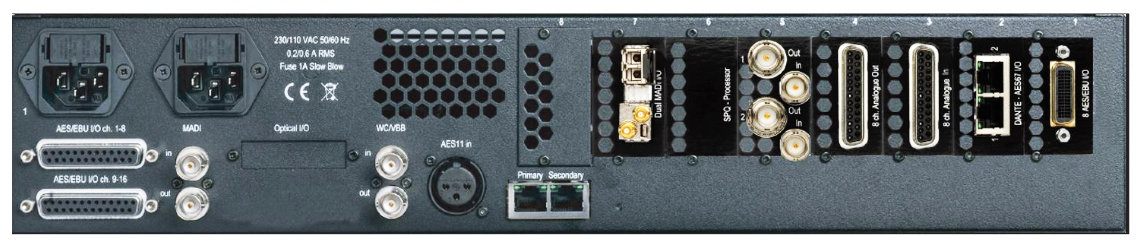

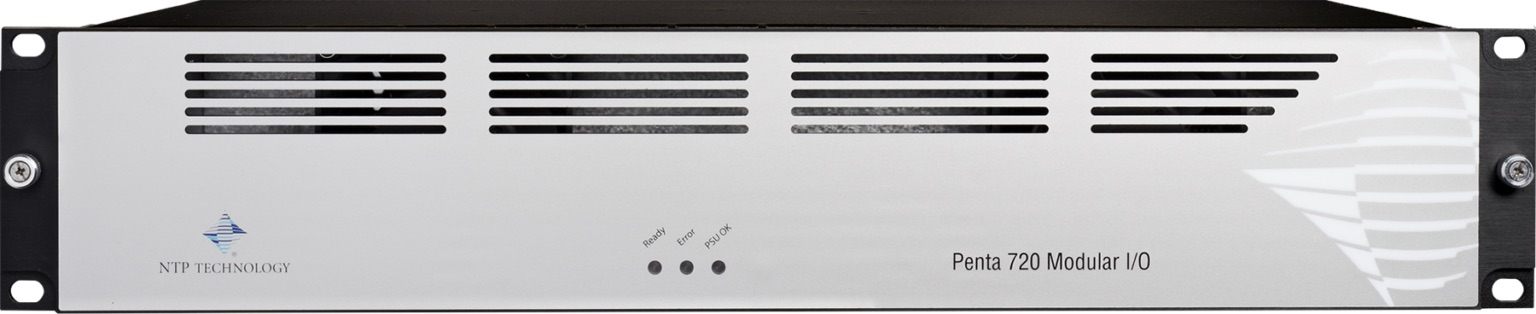

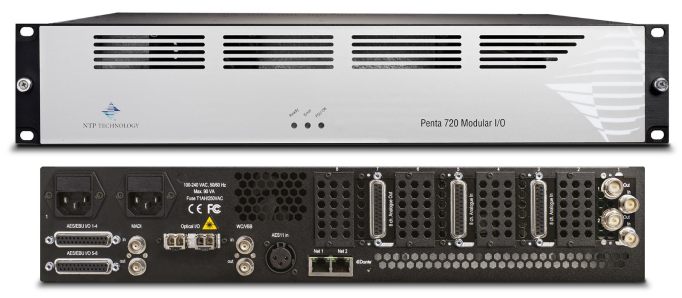

Penta 720 is a 2U modular audio interface designed for use in television or radio studios, outside broadcast vehicles and public-event venues. It comes with eight channel AES3 input/output channels, MADI and two IP Audio Ethernet in/outs.

Up to eight optional cards can be incorporated to match specific operational requirements. The range of available plugin cards includes an eight-channel analogue input interface, eight-channel analogue output, two-channel SDI/HD/3G embedder interface and a two-channel SDI/HD/3G de-embedder interface. All cards support hot-swop. A mini-module slot is available for dual SFP MADI optical input/output module, which is also compliant to the NTP HotLink/Dual MADI format.

Key Features

8 AES/EBU I/O and 1-3 MADI I/O
8 card slots for analogue and digital I/O cards supporting hot-swop
IP audio L3 Ethernet I/O powered by Dante
TCP/IP control via NTP Router Control System and Stand-alone control applications for PC
Single or Dual power supply

Key Benefits

Analogue and Digital audio interfacing
Interfacing and routing of embedded audio in video SDI SD/HD/3G signals
Flexible patching and routing of digital audio signals providing
Stand-alone IP audio interface and format converter
Interface for NTP TDM router systems
Low latency, tightly synchronized, transport of uncompressed audio over IP networks using off the shelf switches

Signal Routing

Penta 720 include a 1024×1024 multiplexer, enabling all analogue and digital inputs and outputs to be routed in any combination; this enables the unit to also split signals for advanced signal distribution. The multiplexer can be used to establish the static connections of the signal inputs and outputs, and furthermore it incorporates soft switching with a fade down and fade up functionality of the signal level. Soft switching ensures that setting or changing a signal path can be made without any audible click or artefacts.
