Modular Audio Router & Interface with 1 Expansion Slot

Penta 721s is a modular MADI, AES and DANTE router with one slot for an optional expansion card, which provides a versatile and flexible solution for signal distribution and audio routing via AES/EBU, MADI, as well as routing via IP Gigabit Ethernet and optical fibre networks. The expansion slot can be installed with any of the available expansion cards.

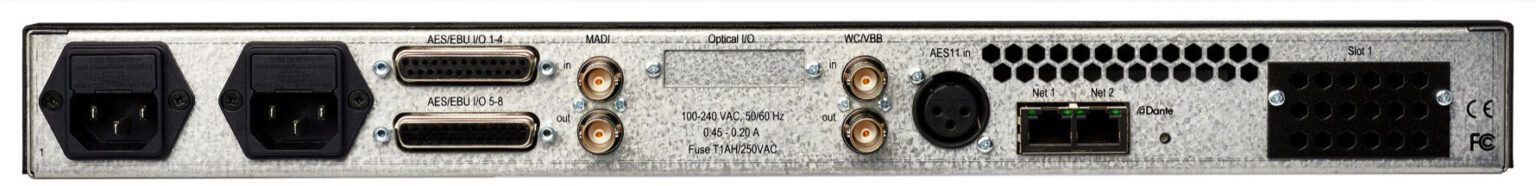

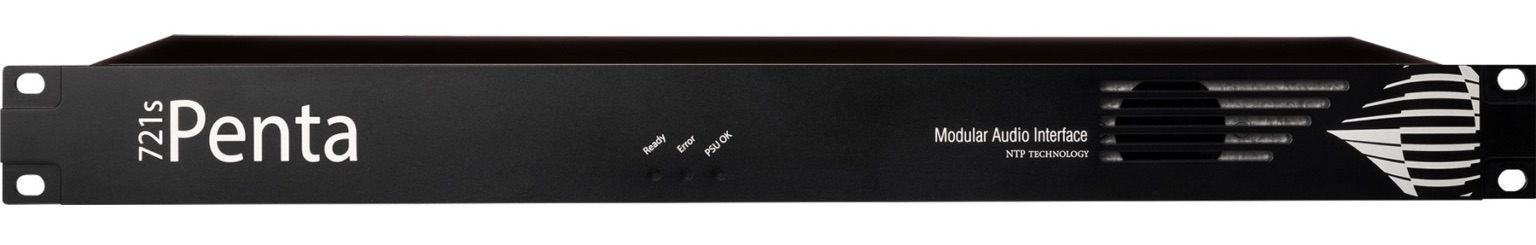

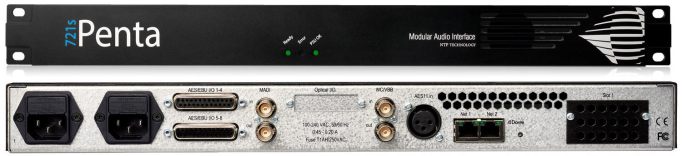

Penta 721s is a compact 1U digital audio interface that comes with eight AES/EBU input/output channels, MADI, Dante IP Audio Ethernet in/outs and Pro|Mon as standard, as well as an optional mini-module slot with dual SFP MADI optical in/out connection.

With Penta 721s you can route to and from any of the digital interfaces on the unit. Further, one optional Penta expansion card can be installed in the unit to hold additional Dante, MADI or AES connections. It can also add Analog inputs or outputs., SDI or Delay processing to the package.

Signal Routing

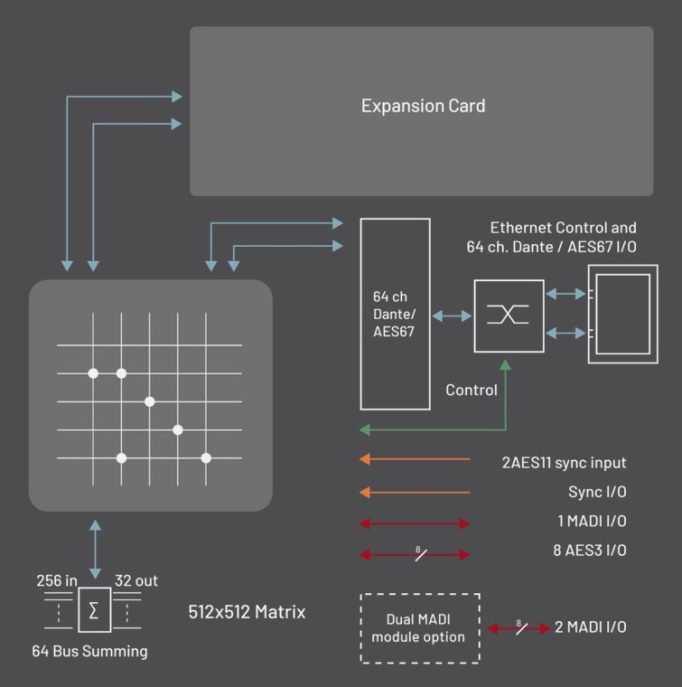

Penta 721s includes a 512×512 multiplexer, enabling all Dante audio and digital inputs and outputs to be routed in any combination. This enables the unit to also split signals for advanced signal distribution. The multiplexer can be used to establish the static connections of the signal inputs and outputs. A 256×32 channel summing mixer is also available as a part of the matrix.
