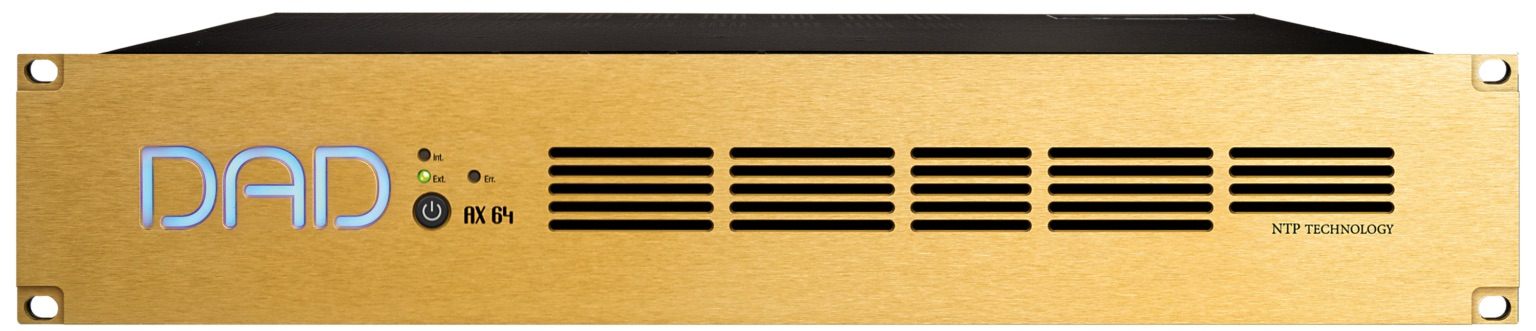

DAD AX64 Modular Audio Interface

NEXT-GEN AD/DA/DD & AUDIO ROUTING

AX32: “I made a dent in the pro audio universe.”

AX64: “Hold my beer!”

The AX64 is a versatile and modular multi-format audio interface with 8 slots for the acclaimed audio I/O cards known from the AX32 and Penta product family. Up to 8 analogue cards can be installed, providing 64 analogue input or output audio channels with the renowned DAD high-end sonic quality.

With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine, Control | Pack and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and is suited for just about any application. In short, AX64 is the ultimate modular multi-format interface, which is ready to take on a wealth of tasks in the Post Production, Studio, Live Music and Installed Audio spheres.

Overview

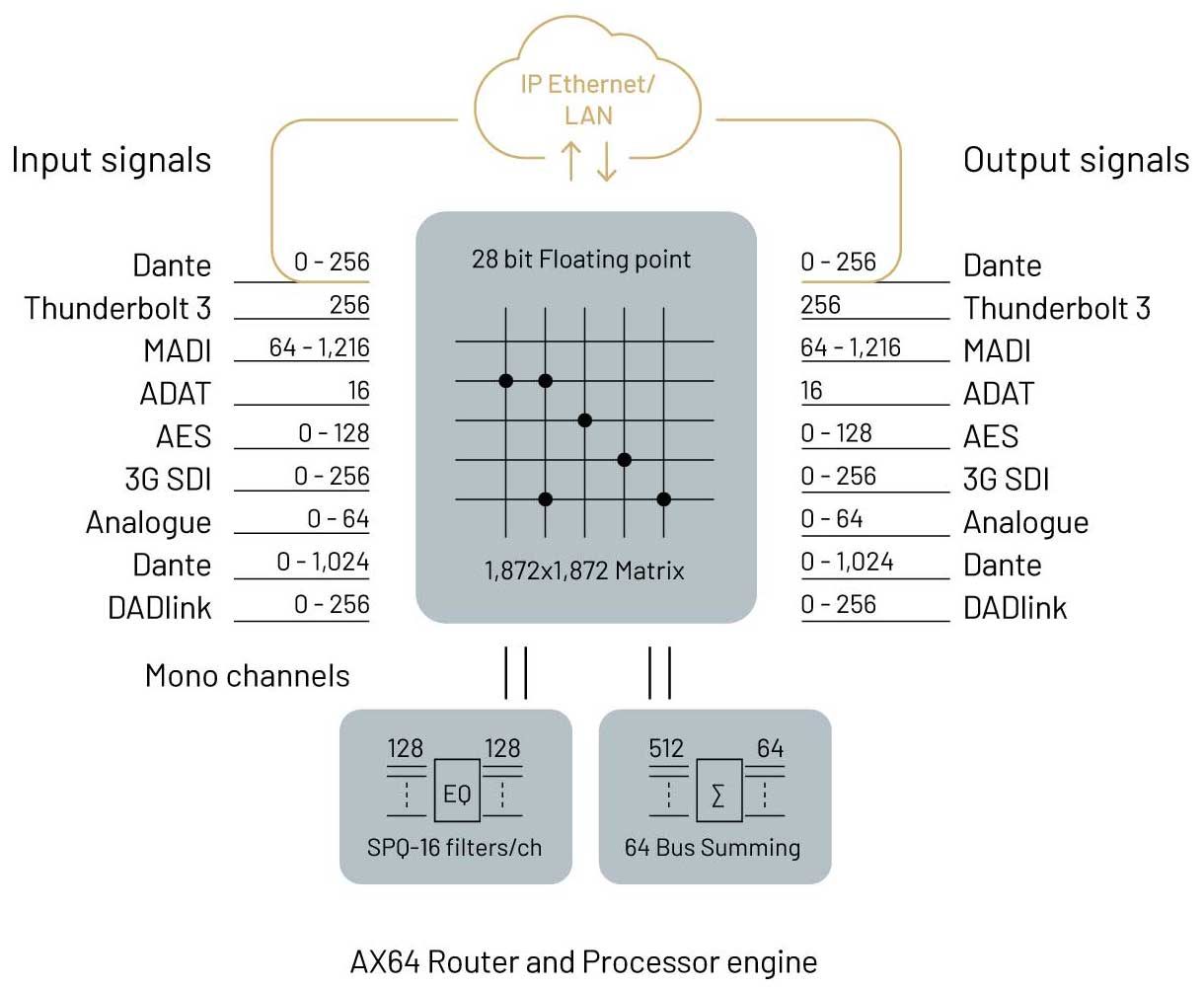

1,872 Input and Output Channels
Multi-Format Audio A/D, D/A and D/D Converter
Digital Router and Monitoring Interface (Analog expansion available, but not included)
Thunderbolt 3 I/O (256 Ch.)
Dante AoIP I/O (256 Ch.)
MADI I/O (64 Ch.)
MADI SFP I/O Module Option Available (128 Ch. – SFP not included)
ADAT I/O (16 Ch.)
8 Slots for Optional Multi-Format DAD I/O Cards
512×64 Ch. PRO | MON Summing and Speaker EQ Processing

Features

Thunderbolt 3 I/O (256 channels at 48 & 96 kHz)
Dante AoIP I/O (256 channels at 48 kHz, 128 channels at 96kHz)
MADI I/O (64 channels at 48 kHz)
ADAT I/O (16 channels) / SPDIF (2 channels)
Up to 1024×1024 channels I/O via optional cards
Up to 256×256 channels I/O via optional module
512×64 channel PRO | MON monitor control
Speaker EQ 128 channel w 16 filters
Control | Pack Preset management
28bit floating point processing
Avid Eucon enabled devices via DADman
Apple macOS and Windows compatible software
Control via Ethernet or Thunderbolt connection
Word Clock I/O
Also available in a version with Dual 110/240V AC Power connection

Specifications

2 x Thunderbolt 3 Ports w. 15W Power Source Each
256 Bidirectional Channels at 44.1/48 kHz
256 Bidirectional Channels at 88.2/96 kHz
128 Channels at 192 kHz
64 Channels at 384 kHz

Audio Drivers

macOS

Core Audio Thunder|Core Audio Driver
Compatible with Intel and Apple Silicon processors, as well as Big Sur macOS and forward
Core Audio Aggregates for More Applications I/O Control Connection for DADman
Control Connection for DADman

Windows

ASIO Thunder|Core Audio Driver
Compatible with Windows 10 and forward
One Application Can Connect to the Asio Driver
Control Connection for DADman

Key Applications

Music Production
Immersive Audio
Post & Film
Live Sound
House of Worship
Location Recording
