Ehrlund Microphones EAP System TRS

Ehrlund Microphones EAP System TRS

Pure connection, natural sound

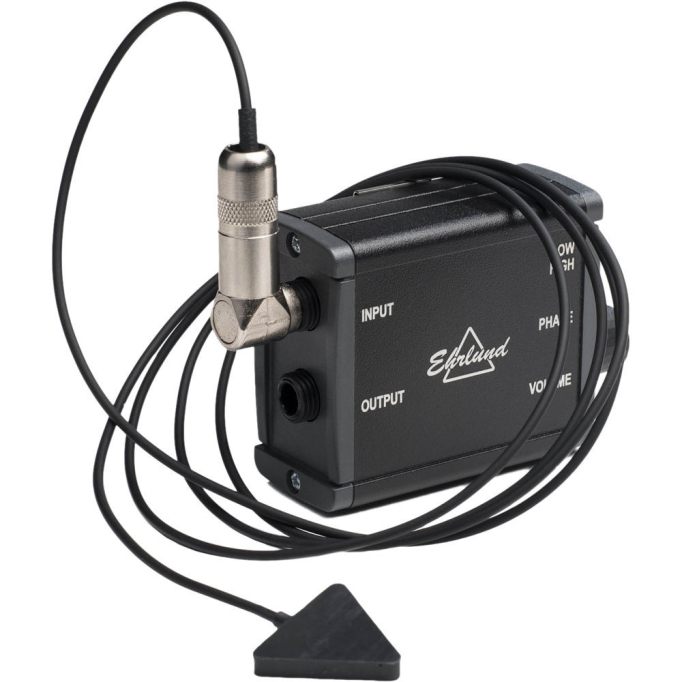

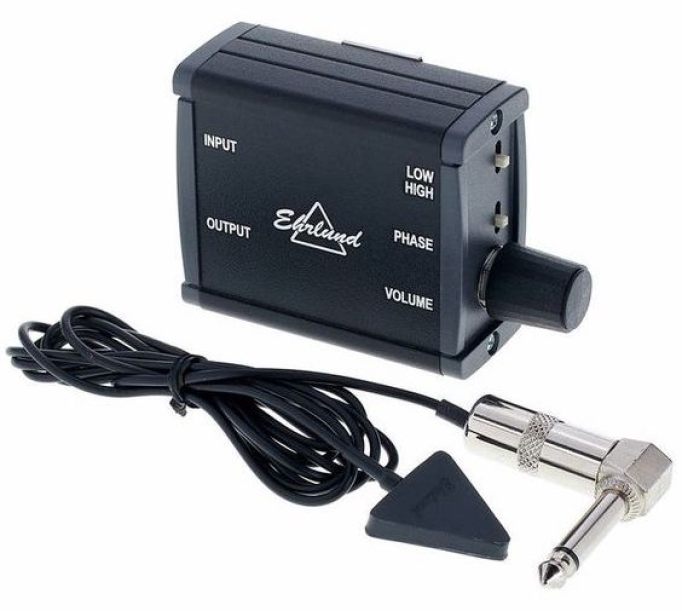

The EAP System TRS is a kit with the EAP Pickup and the EAP Preamp Portable (battery powered).

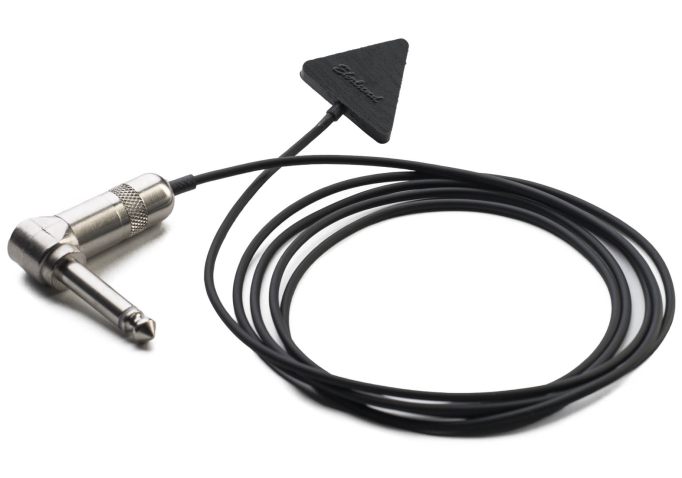

EAP Acoustic Pickup

A linear contact microphone for instruments with an acoustic sound box

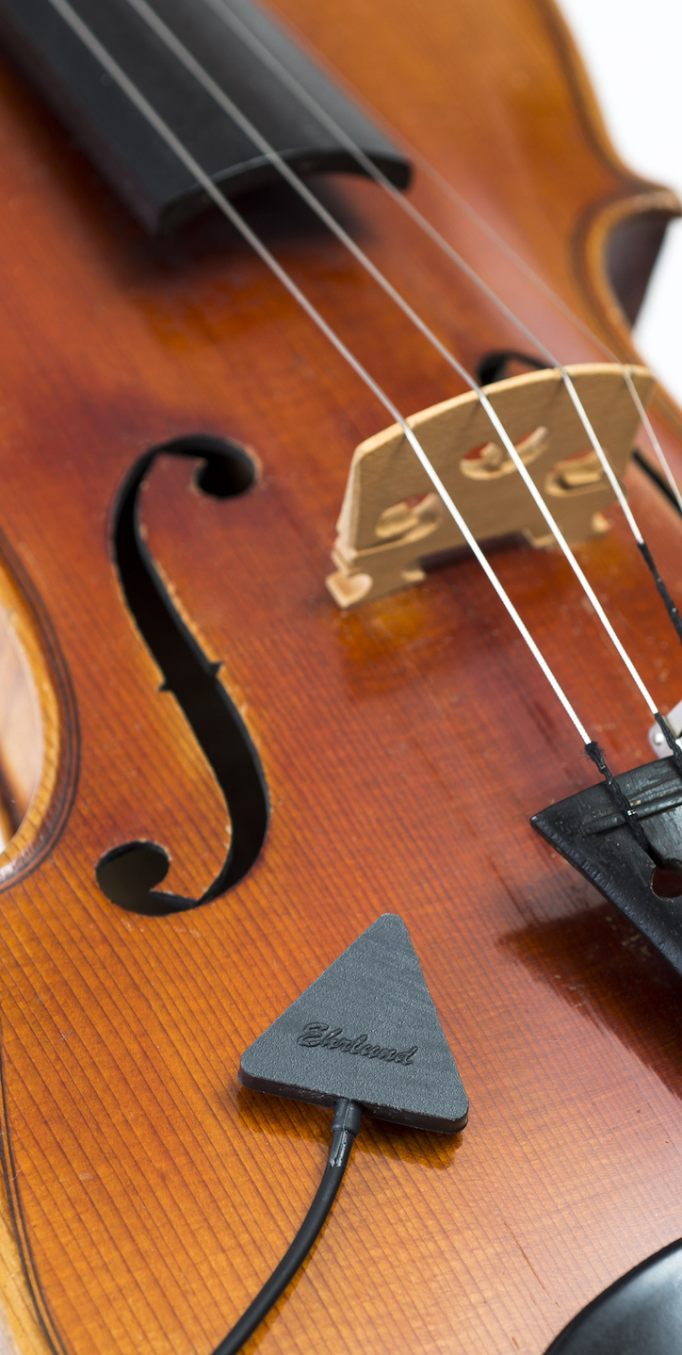

The Ehrlund Acoustic Pickup (EAP) is a linear contact microphone for instruments with an acoustic sound box such as the guitar, violin and double bass. A linear microphone means the pickup reproduces a flat frequency response. The EAP Pickup captures the vibrations in the acoustic instrument, which enables the microphone to deliver very good separation even in normally “impossible” environments where the other musicians are generating high sound levels on their respective instruments. Every instrument is unique and finding the right location for the best sound is a matter of trial and error. The EAP Pickup is easy to move around between different instruments. It is simple to attach to the sound box with adhesive putty. You can even mount the pickup on the inside of the instrument through the sound hole.

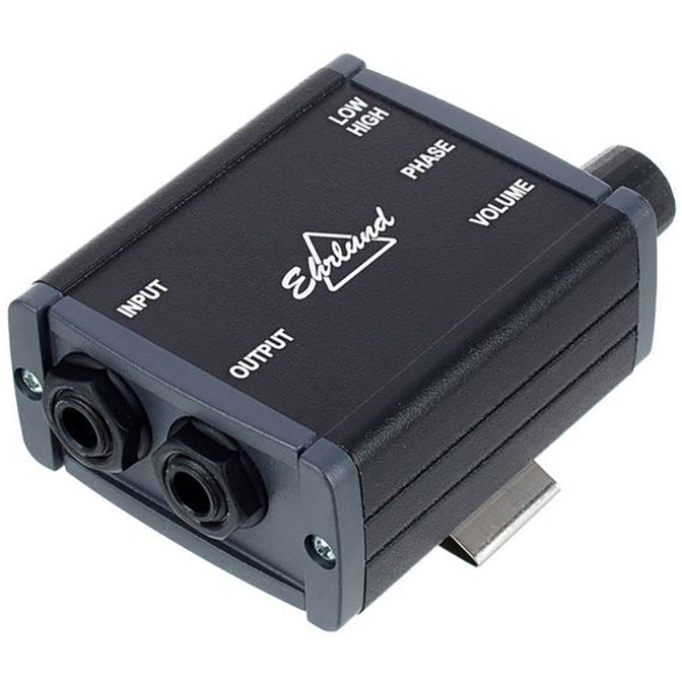

EAP Preamp Portable

Extremely low self-noise, especially developed for Ehrlund Acoustic Pickup

The Ehrlund Preamp has extremely low self-noise and low power consumption. It is optimized for use together with the EAP Pickup. It has the power to drive most accessories arising, such as foot pedals, effects pedals and Di-boxes with transformers. The preamp comes with belt clips for easy attachment to the waistband. It is powered by a 9-volt battery, has an extended operating life of 600 hours and disconnects itself when the output cable is unplugged. The preamp has adjustable volume control, high/low level switch and phase switch to avoid acoustic feedback during live performances.

You can also buy the EAP Pickup and EAP Preamp separately.
