Ehrlund Microphones EHR-H | Price only for current stock
Handheld condensatormicrofoon die zorgvuldig is geoptimaliseerd voor live-optredens, met Ehrlunds’ unieke driehoekige capsule
EHR-H
Klik hier en word Gouden Klant €769,00incl. 21% BTW Dit product goedkoper?
Klik hier en word Gouden Klant
Reserveer demo
Vragen? Betere prijs gezien?
Bel 0512 - 340457 of neem contact op!
Product omschrijving

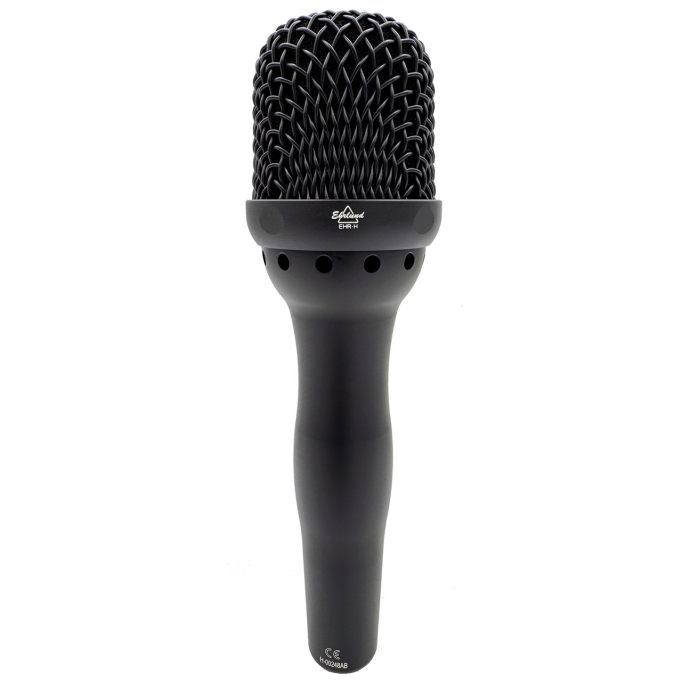

Ehrlund Microphones EHR-H
Handheld excellence, honestly heard
The EHR-H is a handheld condenser microphone carefully optimized for live performance. At its core is the same foundation found in every Ehrlund microphone: the unique triangular capsule, paired with patented phase- and frequency-linear electronics.
This design delivers the pure, clean sound image Ehrlund microphones are known for—open, natural, and uncoloured. The triangular membrane shape allows resonances to decay faster than in traditional round or square membranes, helping sound remain clear and controlled even at high sound pressure levels.
Sharp transients sound more natural, and complex sound waves are resolved with remarkable precision as they travel across the triangular surface. The signal is then amplified by Ehrlunds' near noise-free electronics, preserving detail and realism without altering phase or frequency or adding unnecessary noise.
Because of its clean and even response, the EHR-H feels intuitive to work with—both on stage and in the studio. Its broad frequency characteristics often allow mixing console faders to remain close to their neutral positions, with little need for corrective EQ.
HANDHELD CLARITY WITHOUT COMPROMISE
A condenser microphone designed for live performance, delivering open, natural sound with exceptional control at high sound pressure levels.
PATENTED TRIANGULAR MEMBRANE
Faster resonance decay preserves detail and transient accuracy, keeping vocals and instruments clear and uncoloured.
INTUITIVE ON STAGE AND IN THE MIX
A clean, even response reduces the need for corrective EQ, allowing faders to stay close to neutral.
Characteristics & features
- Handheld condenser microphone
- Optimized for live environments
- Patented triangular capsule design
- Transparent and natural sound
- Excellent low-noise performance
- Phase- and frequency-linear response
- Natural reproduction of fast transients
- Negligible sound coloration, true to the original source
- Frequency range from infrasonic bass to ultrasonic treble
- Low energy consumption, approx. 2.0 mA
Technical specifications
- Type: Handheld condenser microphone
- Membrane type: Triangular membrane combining characteristics of both large and small diaphragms
- Pickup pattern: Cardioid
- Frequency range: 7 Hz – 87,000 Hz
- Sensitivity at 1 kHz: −42 dBV/Pa (8 mV/Pa)
- Impedance: Unaffected by load impedance
- Equivalent noise level: < 9 dBA
- Signal-to-noise ratio: 85 dBA
- Dynamic range: 127 dB
- Max SPL (peak): 131 dB SPL @ 0.5% THD, 136 dB SPL @ 1% THD, 155 dB SPL (clip)
- Power supply: 48 V phantom power
- Current consumption: 2.0 mA
- Connector: 3-pin XLR
- Materials: Aircraft-grade aluminium body, hardened nickel-plated stainless-steel grille
- Finish: Matte black powder coating
- Dimensions: Ø53 mm × 182 mm
