Locomotive Audio MODEL L72P-2 | Special Pre-Order-Price

Locomotive Audio MODEL L72P-2 | Special Pre-Order-Price

Name: Locomotive Audio MODEL L72P-2 | Special Pre-Order-Price
SKU: 20260608002

19-Inch premium V72-stijl buizenvoorversterker, levert getrouw het dikke, romige, warme geluid van legendarische Duitse omroepmodules uit de 50’s/60’s

MODEL L72P-2

Jaarverhuur

€1,59/ dag

Voeg toe aan jaarverhuur +

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

Locomotive Audio MODEL L72P-2

Your Search for the German Console Preamp Sound Ends Here

TWO CHANNELS OF THE MOST ACCURATE SOUNDING V72-STYLE GAIN AVAILABLE TODAY

The Locomotive L72P gives you the solid lows, thick & creamy mids, and smooth top end - just like the original

Inspired by the console amplifiers built for the German Radio Network decades ago, the Locomotive L72P delivers the sound and character of the original V72 modules, all with the modern options and flexibility today's engineers need. Countless hours were spent making sure every aspect of the L72P amplifier lived up to its vintage inspiration. From house-wound transformers and plate chokes to more affordable and easy-to-find tubes, Locomotive Audio designed the L72P with two things in mind: performance and ease of use well into the future.

Locomotive Audio product page: MODEL L72P-2

Features

Microphone, Line & high impedance instrument inputs
Two 6922 tubes per channel
3-Position Input Switch: 4k Ω Mic, 20k Ω Line, DI 1.6meg Ω
Polarity reverse switch
20 dB pad switch
85 Hz low-cut filter switch
DI on for each channel
+48 V phantom power

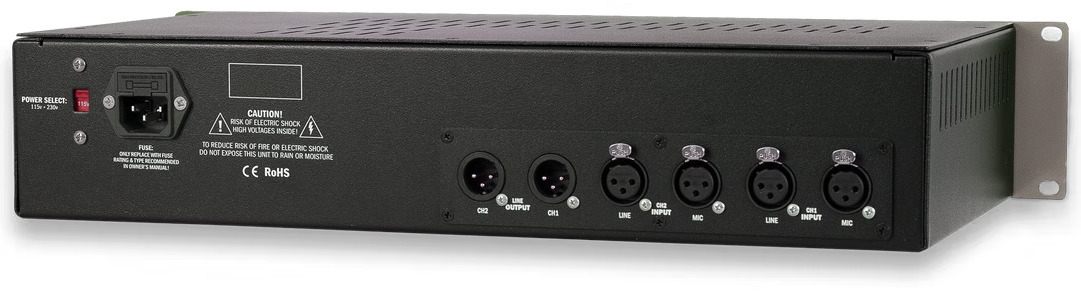

XLR mic input, line input, and line output connections

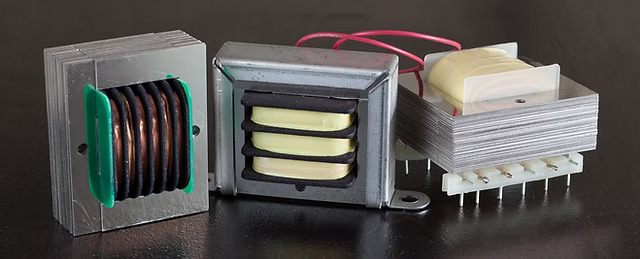

Input & Output transformers as well as plate choke wound in-house
Built in USA
Heavy 16 gauge steel chassis
115 V/230 V AC mains option on rear
Backed by lifetime warranty parts and labor, excluding tubes

Technical Specs

Microphone input load impedance: 2k Ω or 4k Ω depending on internal jumper
Line Input load impedance: 20k Ω
Output impedance: 34 Ω when set to 34 dB gain and no output attenuation
1/4" DI impedance: 1.6meg Ω
Output Level LED Color:
Greater than -10 dBu = Green
Greater than +10 dBu = Orange
Greater than +18 dBu = Red
54 dB gain max (150 ohm source)
Frequency response: Variable depending on gain setting
Maximum 20 Hz & 1 kHz input level for 1% THD: -18 dBu (+2 dBu with Pad)
Maximum output level: +24 dBu
THD+N: <1%
S/N ratio: >70 dB
Dimensions: 19" W x 3.5" H x 10" D (2u rackspace)
Shipping Weight: 20 lb
Power Consumption (120/240 VAC): 25 watts
