RME M 1620 Pro D

RME M 1620 Pro D

16-kanaals A/D, 20-kanaals D/A-converter met ADAT, Dante® en MADI

M-1620 Pro D

Prijs op
aanvraag Gouden Klant prijs beschikbaar!
Klik hier en word Gouden Klant

Aantal

Voeg dit product toe aan uw offerte.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

In offerte

Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

M-1620 Pro D

16 channel A/D, 20 channel D/A converter with ADAT, Dante®, MADI and separate phones out

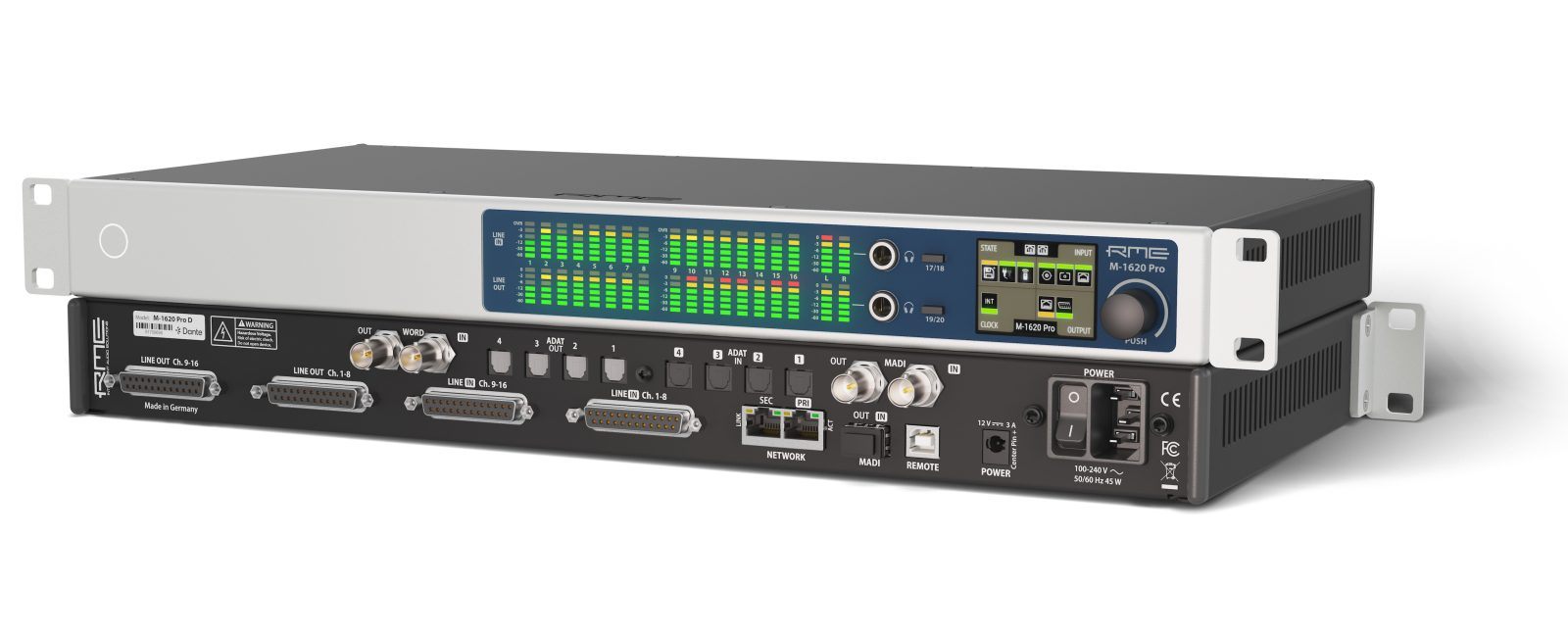

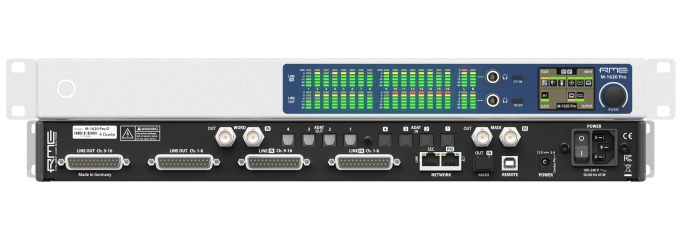

The RME M-1620 Pro D converts 16 analog line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT and Dante network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network.

Connectivity and Features

16 x Line Input
16 x Line Output
2 x Phones Output
4 x ADAT I/O
1 x MADI Optical SFP (optional)
1 x Redundant PSU (optional)

1 x Word Clock I/O
1 x MADI I/O coaxial
2 x Gigabit Ethernet (802.3 compliant)
SteadyClock FS
DC-coupled Outputs
USB for firmware & remote control

Multiple layers of redundancy make the M-1620 Pro Series a perfect companion for any kind of live sound application.

Simplicity at first glance - Flexibility and reliability beyond

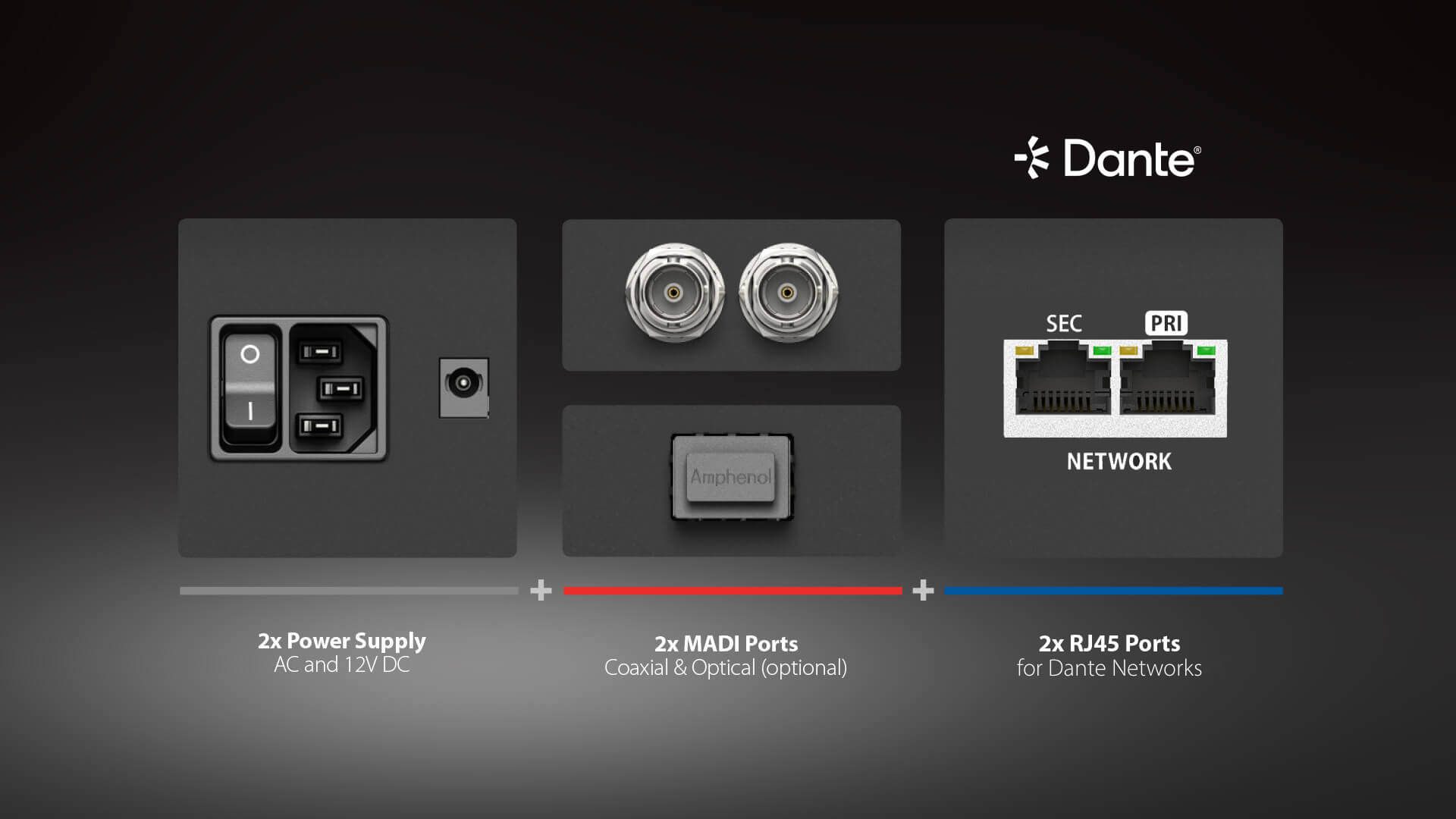

RME prioritizes reliability by equipping the M-1620 Pro with built-in redundancy. This includes dual network and dual MADI connections, along with a monitored DC input in addition to the internal AC power supply. A unique system clearly signals when an issue arises, ensuring seamless operation. With full stand-alone capability, users can adjust device settings directly on the unit for quick modifications or to recall entire user-defined presets.

Responding to frequent requests, the M-1620 Pro D integrates 64 channel Dante connectivity, providing direct links to other audio devices via standard ethernet switches. If redundancy is not required, the device can act as a switch itself and allow daisy-chains of several Dante devices. Users can record and playback up to 64 channels of any of the M-1620’s analog and digital I/O on their computer using Audinate’s Dante Virtual Soundcard™ (license not included).

Add Analog and DANTE I/O to any existing MADI devices

The M-1620 Pro allows manual configuration of the converter’s aliasing filters for optimal impulse and frequency response. Jitter on digital input signals is effectively reduced with SteadyClock FS. Separate Word Clock BNC and coaxial MADI connectors, with optional optical MADI via an SFP module, allow the device to be easily integrated into existing infrastructure.
