United Studio Technologies Replay Box

United Studio Technologies Replay Box

Reampbox met dubbele transformator voor verschillende klankkleuren; transparant circuit voor een helder geluid en harmonisch circuit voor meer kleuring of een vollere klank

Replay Box

Prijs op
aanvraag Gouden Klant prijs beschikbaar!
Klik hier en word Gouden Klant

Aantal

Voeg dit product toe aan uw offerte.
Dit product wordt voor u besteld.
Neem contact op voor de levertijd

In offerte

Leverings- en Retourbeleid

Vragen? Betere prijs gezien?

Bel 0512 - 340457 of neem contact op!

Product omschrijving

United Studio Technologies Replay Box

Dual Transformer Reamplification Box

The new gold standard in reamplification: United's Replay Box is built on the legacy of Chad Kelly's famous hand built reamplification boxes. Two transformers, loads of gain, and incredibly low noise make this innovative tool a pleasure to use for the most demanding engineers and musicians.

The best re-amp box

The debate is finally over.
United’s Replay Box offers the very best performance and options for re-amplification. Whether you’re producing the most tone-savvy musician or experimenting with sound design, the Replay Box performs on a level all of its own — with an ultra-quiet design and flexible tone voicing. With two different custom transformers for two unique sonic fingerprints and all of the gain you need, the Replay Box raises the bar for all recordists.

Two transformers for two different voicings

Replay Box features two independent reamplification circuits: Transparent and Harmonic.

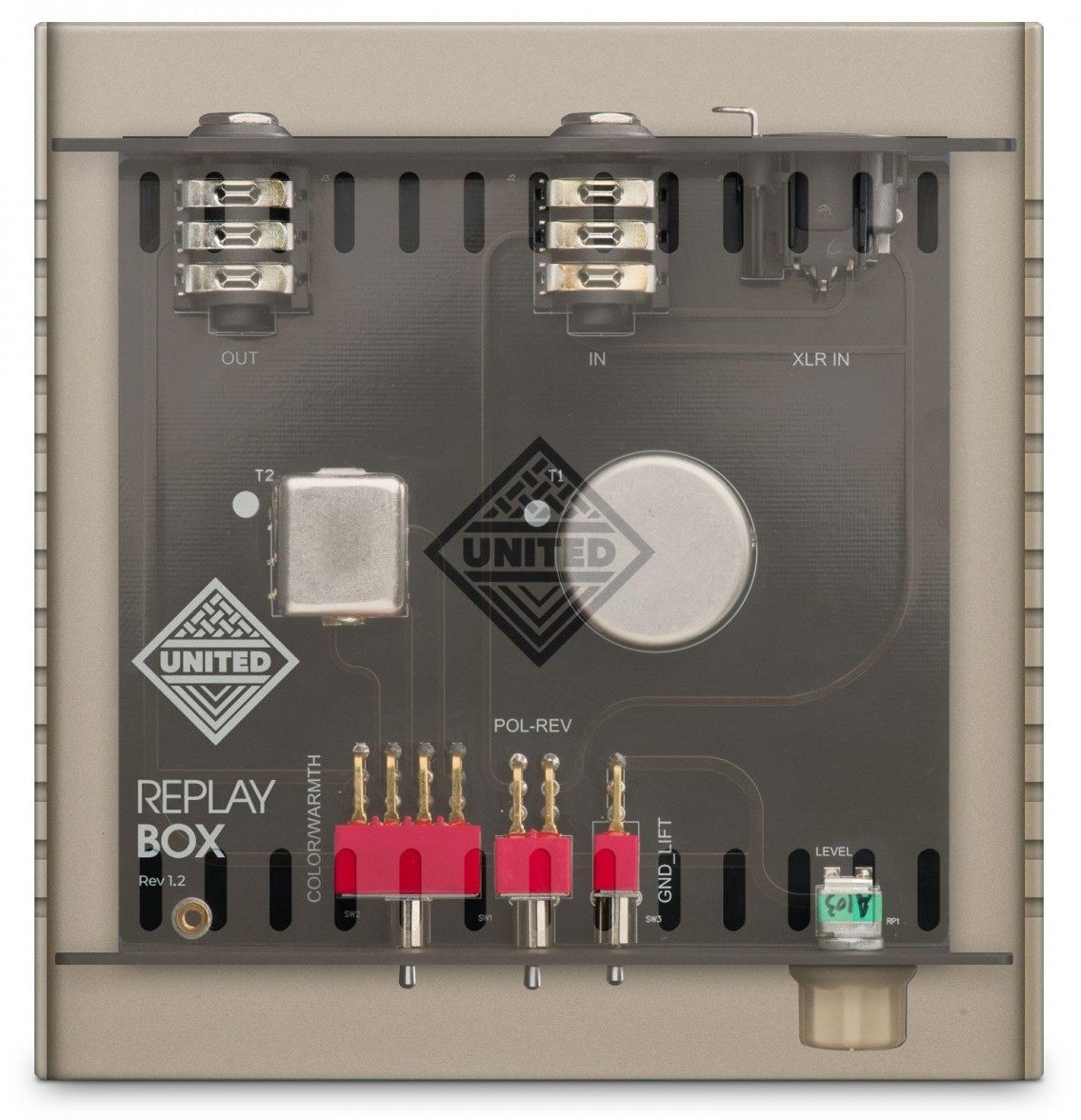

The Transparent circuit features United's custom-wound, US-made, 5043 step up transformer, which provides extraordinary signal isolation and noise rejection for mastering-grade quality. It accepts your balanced or unbalanced line level input signal to deliver an absolutely clean, isolated, unbalanced output capable of driving any amp, pedal, or processor. Because the transformer is wound to have passive gain, it has about 3 dB of additional gain on tap above its already +4 dB rated input from your DAW or recorder. No active circuitry or other components are involved — you get the cleanest gain available on any re-amplification device.

The Harmonic circuit is for those who desire a bit more coloration or fattening in the re-amp stage. Harmonic mode engages an alternate transformer specifically designed to add character. This transformer is wound to offer a steeper gain ratio alongside a very gentle rolling-off of the uppermost high frequencies. It adds both harmonic and phase distortion in the sub-bass region, fattening the low mids and delivering a more aggressive and warmer tone.

Specifications

Input Impedance: Transparent Mode: 300 Ω, Harmonic Mode: 50 Ω
Output Impedance: Transparent Mode: 1k Ω, Harmonic Mode: 150 Ω
Frequency Response: Transparent Mode: 20 Hz-20 kHz +/-0.5 dB, Harmonic Mode: 40 Hz-20 kHz +/-0.5 dB
Output Gain Level: Transparent Mode: +3 dB above Input Level, Harmonic Mode: +5 dB above Input Level
Recommended Input: +4 Line Level Balanced
Input Auxiliary Controls: Phase Inverse, Ground Lift
Dimensions: Height (w feet): 52 mm / 2″, Height (w/o feet): 46 mm / 1.8″, Width: 149 mm / 5.86″, Depth: 155 mm / 6.1″
Weight: .8 kg / 1.76 lbs
