Product omschrijving

Warm Audio JUDE-MP2

STEREO DUAL-DISCRETE CONSOLE MICROPHONE PREAMP

Original Sound Techniques Console Preamp That Captured London’s Most Famous Recordings of the 60s & 70s

THE SOUND OF 1960S LONDON HITS

The Jude & Stereo Jude are authentic reproductions of the original Sound Techniques "A-Range" custom console microphone preamps that helped define the sound of legendary recordings at some of London's most famous studios such as De Lane Lea Studios and Trident Studios. Created in direct partnership between Sound Techniques and Warm Audio, Jude accurately delivers the exact microphone preamp circuit designed by Geoff Frost from those historic London consoles. With original dual-discrete 3035 Class-A amplification, Geoff Frost's proprietary Z-Match impedance circuit, custom-spec CineMag USA transformers, and meticulously hand-wired construction, Jude has the unmistakable depth, punch, and musicality heard on classic recordings by David Bowie, Elton John, Queen, and several Beatles recordings including “Hey Jude”.

DUAL-DISCRETE, Z-MATCH MAGIC

Built to original Sound Techniques specifications, every Jude channel preserves the complete signal path and tonal flexibility that made the "A-Range" consoles legendary among engineers and producers. The exclusive 9-position Z-Match control allows each channel to optimize the relationship between microphone and preamp, offering nine distinct tonal interactions that shape gain, transient response, frequency balance, and harmonic character with virtually any microphone. Combined with premium Wima and Nichicon audio-grade capacitors, carbon resistors, custom CineMag USA transformers, and Warm Audio's meticulous hand-tested construction, Jude delivers the authentic British console sound once reserved for a handful of the world's most influential recording studios.

KEY FEATURES

What you need to know

  • Like the vintage Sound Techniques console preamps, Jude includes all the features that deliver the authentic 60’s London console experience.
  • Exclusive to Sound Techniques, the 9-position Z-Match tone control optimizes the interaction between microphone and preamp. This tone control allows engineers to fine-tune gain, response, and character across a wide range of vintage and modern microphones. It’s like having 9 tonal change options that will interact differently with any microphone.
  • Quickly switch between a traditional mic-level impedances on the Z-Match to a 10kΩ impedance that better-matches modern audio interface outputs for running program material like tracks and stems for added analog mojo.
  • The Jude preamp includes selectable 48v phantom power to power any mic that requires it. This is most common on condenser mics, and microphones labeled ‘active’ or with active modes.
  • The Jude includes a polarity control that allows the preamp to easily flip phase, managing unintended sonic results between multiple mics in the same room.

TECHNICAL SPECIFICATIONS

Product Description & External Specs (PER CHANNEL)

  • Dual-Channel, Dual-Discrete Console Microphone Preamp
  • Variable Input Gain Based On Z-Match Impedance Setting
  • 48v Phantom Power | Polarity Switch | Line-Level Switch

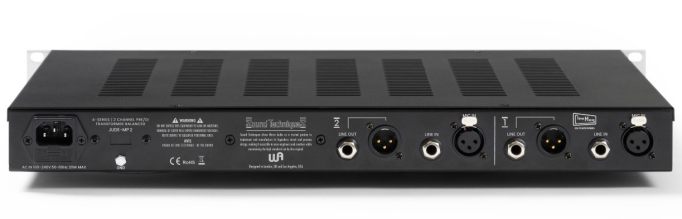

  • Inputs: XLR Mic | TS/TRS ¼”
  • Outputs: XLR / ¼” TRS Line-Level
  • 5-Year Warranty

Components & Internal Specs (PER CHANNEL)

  • Custom-Wound, 3-Impedance CineMag Input Transformers
  • Custom-Wound, High-Purity Nickel CineMag Output Transformers
  • Variable Mic Input Impedance: 60Ω | 200Ω | 1.5KΩ | 10KΩ
  • Nichicon Audio Grade & Wima Capacitors

Performance Specs (PER CHANNEL)

  • Preamp Gain Per-Channel: 65 - 76dB [40Ω Source Impedance]
  • EIN: -128 dBu (A-wtd)
  • Self-Noise: -99 dBu (A-wtd)
  • THD: 0.008%
  • Frequency Response: 10 Hz - 25 kHz (+/-2dB)
